Walk Through Frame Scaffolding
Product Introduction
Walk Through Scaffolding is a modular and efficient temporary support system widely used in construction, maintenance, and industrial installation. Our scaffolding is manufactured from high-quality steel, with precision welding and surface treatment, offering strong load-bearing capacity, easy installation, and reliable safety. Its standardized design allows flexible adaptation to various site conditions and height requirements, making it an essential auxiliary equipment for modern construction.

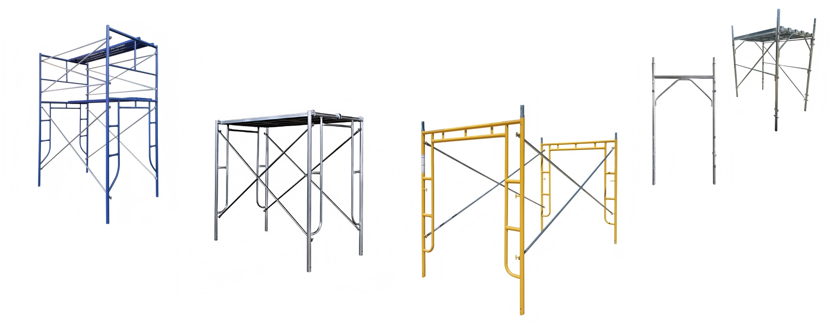

Standard-Sized Scaffolding

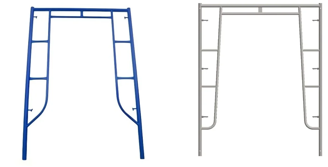

1.Walk Through Scaffolding
| Size | Width (W) | Height (H) | Surface Treatment |
| 5’x6’4″ | 1524mm (5′) | 1930mm (6’4″) | Galvanized/Powder coated |
| 5’x5′ | 1524mm (5′) | 1524mm (5′) | |
| 5’x4′ | 1524mm (5′) | 1219mm (4′) | |
| 5’x3′ | 1524mm (5′) | 914mm (3′) | |
| 4’x5′ | 1219mm (4′) | 1524mm (5′) | |
| 4’x4′ | 1219mm (4′) | 1219mm (4′) | |
| 4’x3′ | 1219mm (4′) | 914mm (3′) | |
| 3’x5′ | 914mm (3′) | 1524mm (5′) | |
| 3’x4′ | 914mm (3′) | 1219mm (4′) |

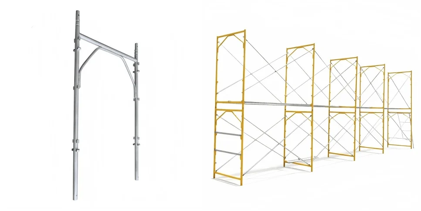

2.Euro Scaffolding
| Size | Width (W) | Height (H) | Surface Treatment |
| 3 ‘4 ” x 6’7 ” | 1000mm(3’4”) | 2000mm（6’7”） | Powder coated |

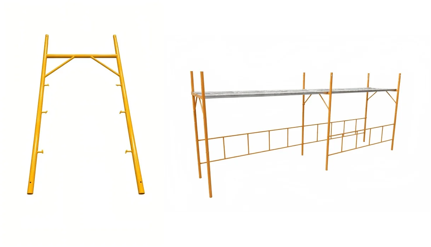

3.Italian Scaffolding
|
Size |
Width (W) | Height (H) | Surface Treatment |
| 3’5″x6’7″ | 1050mm（3’5″） | 2000mm（6’7″） |
Galvanized/ Powder coated |

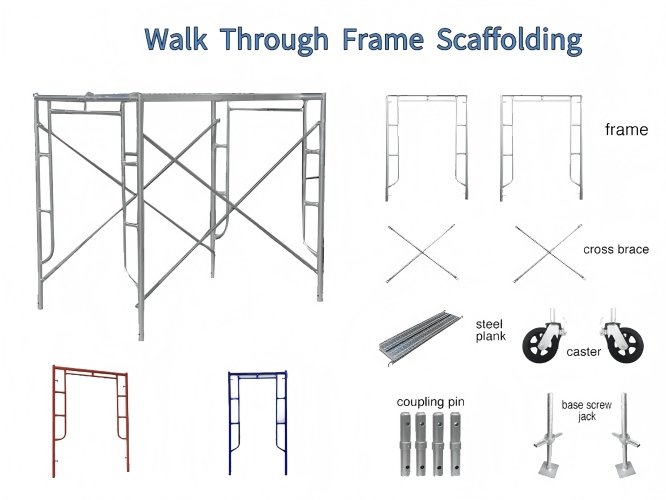

Walk-through scaffolding standard accessories
A standard walk-through scaffolding set typically includes:
·4 wheels with brakes
·Several steel planks (e.g., 2–4 depending on height)
·4 base jacks (for leveling)
·1 step ladder (for access between levels)
·2 cross braces and 4 joint pins to secure the structure
Advantages
These strengths collectively position frame scaffolding as a preferred solution in construction, valued for its practical design, reliable safety, and operational efficiency.
Modular Design
Its standardized, modular components allow for rapid assembly, disassembly, and reconfiguration, seamlessly adapting to diverse project layouts and site constraints.
Robust Stability
Engineered for superior structural integrity and high load-bearing capacity, it reliably supports personnel, equipment, and materials for demanding construction activities.
Adaptable Configuration
The system offers exceptional flexibility to accommodate varying heights, spans, and complex geometries, making it ideal for projects with irregular footprints or limited space.
Integrated Safety
Safety is enhanced through readily available integrated features such as guardrails, toe boards, and diagonal bracing, providing a secure working platform.
Unobstructed Access
It facilitates easy and direct access to all areas of a structure, efficiently supporting construction, maintenance, inspection, and repair work.
Scaffolding Assembly Demonstration Video
Scaffolding Production Video

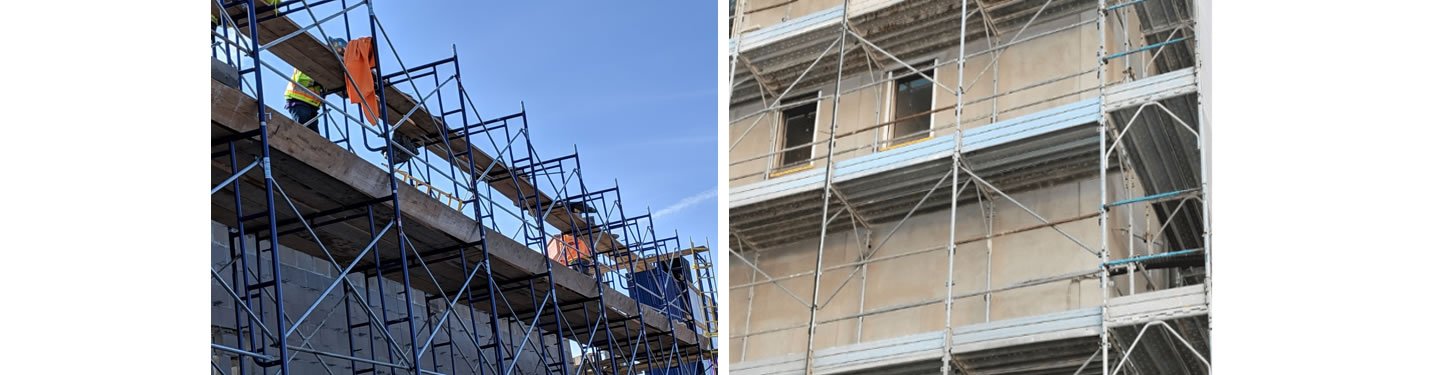

Application
Packaging And Shipping
Packaging prioritizes safe transport and easy handling. Components are bundled by type and secured with straps, with protective wrapping to prevent damage. The goal is efficient unloading and setup on-site.

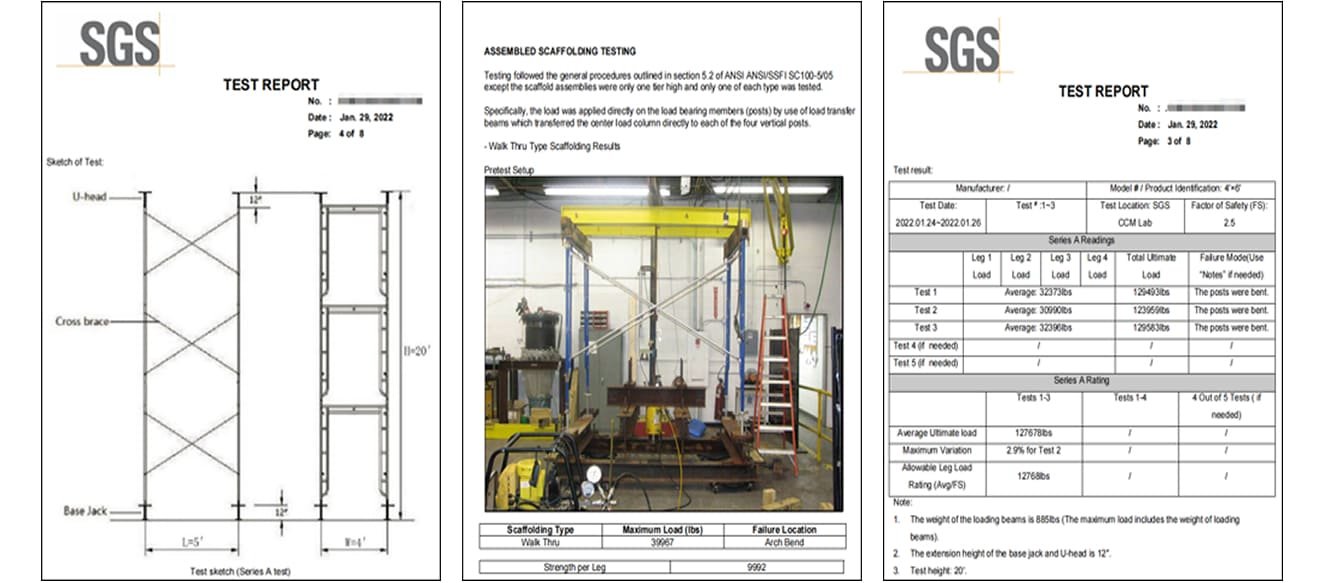

SGS Test Report
Exhibitions And Visits
FAQ
Q1: What is the maximum free-standing height for door frame scaffolding?
A1:The recommended free-standing height is no more than 24 meters. Greater heights are possible when tied to a structure, subject to professional design calculations.
Q2: What is the delivery lead time?
A2:28-42 days for standard products. Custom products require an additional 10 days, depending on order quantity.
Q3: Do you provide installation guidance?
A3:Yes. We provide detailed installation manuals, video tutorials.
Q4: Can you provide matching safety nets and working platforms?
A4:Yes. We offer complete scaffolding system solutions, including all related accessories like safety nets, decking, and ladders.
Q5: What are the surface treatment options and how to choose?
A5:Yes. We currently offer two excellent surface treatment options: Pre-galvanized and Powder Coating.For performance & value outdoors: Choose Pre-galvanized.For short-term use and where color selection is required：Choose powder coating.
Q6: What payment terms do you accept?
A6:We accept T/T with 30% advance payment. The remaining 70% is due before packing for FOB, or against a copy of the B/L for CIF. More flexible terms can be discussed for long-term partners.
Q7: How do you guarantee product quality?
A7:We ensure quality through strict, end-to-end control. Our professional team conducts multiple inspections from raw materials to production and final pre-shipment.
Q8: Can you provide samples? Are they free?
A8:We can provide samples. However, you will need to pay a sample fee, which we can cover free of charge for shipping. Once you place a formal order, we can refund the sample fee to you.
Q9:Where is your factory located? Can we visit it?
A9:Our factory and headquarters are in Tianjin, China. Visits are welcome. Please inform us of your schedule in advance for arrangements.
Q10:Do you have relevant industry certifications? (e.g., ISO9001)
A10:Yes. We are ISO9001 certified, and our products meet international standards like CE and SGS.
