Cuplock Scaffolding

Cuplock Scaffolding

1.Cuplock Scaffolding Introduction

The Cuplock Scaffolding System is a multi-purpose steel scaffolding system designed for access scaffolding and heavy-duty load support in construction, infrastructure, and industrial projects.

As a reliable Cuplock scaffolding manufacturer and supplier, we provide high-quality systems suitable for both small and large-scale applications.

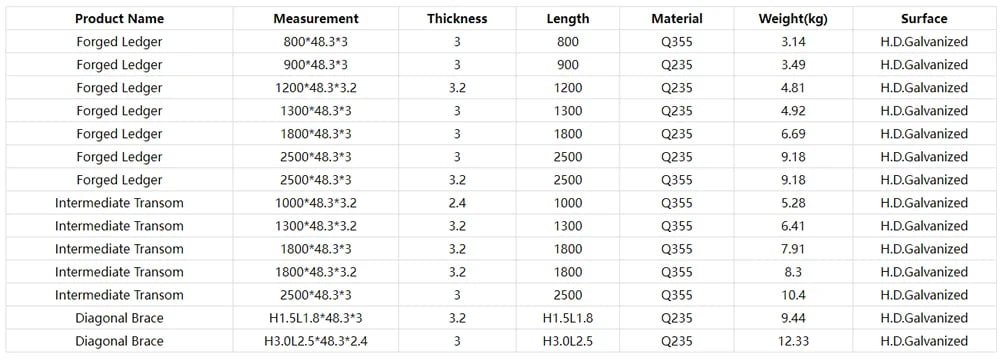

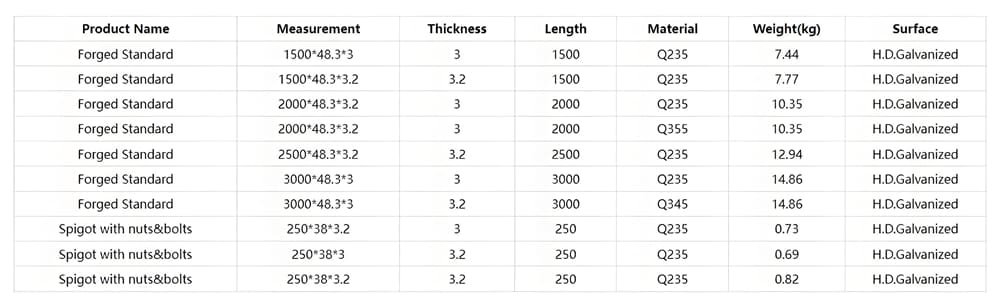

2.Specification





3.Cuplock Scaffolding Assembly

4.Advantages



5.Application





6.Packing&Shipping







7.Customer visit and Exhibition







8.SGS Certificate

9.FAQ



Q1: What is Cuplock scaffolding?

A1:Cuplock scaffolding is a modular steel scaffolding system that uses a unique cup-lock node to connect vertical standards and horizontal ledgers, providing strong, stable, and efficient support for access and load-bearing applications.





Q2:What is the delivery time for Cuplock scaffolding?

A2:The standard delivery time for Cuplock scaffolding is 4–6 weeks after order confirmation and receipt of the deposit.





Q3: What payment terms do you offer for Cuplock scaffolding?

A3:We offer both FOB and CIF payment terms to meet different customer needs.

For FOB orders, the payment terms are 30% in advance and 70% upon container loading.

For CIF orders, the payment terms are 30% in advance and 70% upon presentation of a copy of the Bill of Lading.





Q4: What is Cuplock scaffolding used for?

A4:Cuplock scaffolding is widely used for access scaffolding, shoring support, staircase towers, circular scaffolds, and loading towers in building construction, infrastructure, and industrial projects.





Q5: What are the advantages of Cuplock scaffolding?

A5:Cuplock scaffolding offers high load capacity, fast installation, strong connections, excellent safety, and long service life, making it a highly cost-effective scaffolding solution.





Q6: Is Cuplock scaffolding suitable for heavy-duty applications?

A6:Yes. The Cuplock system is engineered to handle high vertical and horizontal loads, making it ideal for heavy-duty, high-rise, and large-scale construction projects.





Q7: How does the Cuplock system work?

A7:Up to four horizontal ledgers can be connected to one vertical standard using a single cup-lock action, creating quick, secure, and rigid connections without the need for bolts or loose fittings.





Q8: What standards does Cuplock scaffolding meet?

A8:Our Cuplock scaffolding system is manufactured in accordance with EN 12811-1, ensuring safety, structural performance, and compliance with international construction standards.





Q9:What material is Cuplock scaffolding made from?

A9:Cuplock scaffolding is made from high-quality structural steel, typically Q235 or Q345 (Q355 optional), providing excellent strength, durability, and load-bearing capacity.





Q10:Is Cuplock scaffolding easy to install?

A10:Yes. With fewer components and a simple locking mechanism, Cuplock scaffolding can be erected and dismantled much faster than traditional tube-and-coupler systems.



Related Products

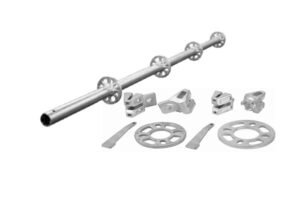

Ringlock Scaffolding
